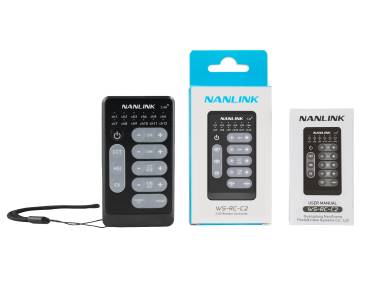

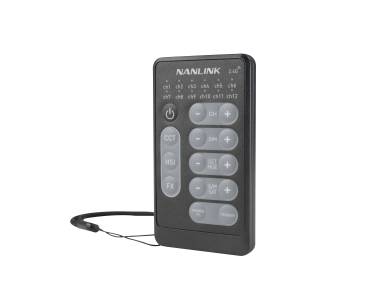

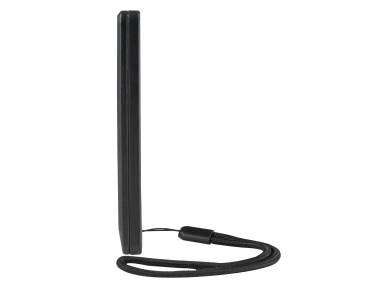

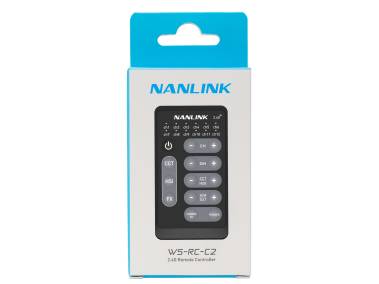

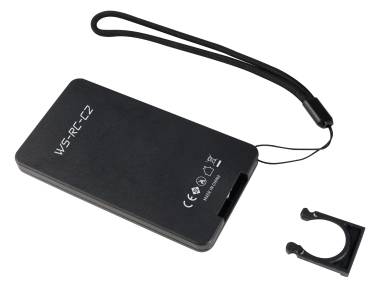

NANLINK WS-RC-C2 RGB and Bi-Color Radio Remote Control
Code no: 3702
For convenient, wireless control of one or several NANLITE/NANLUX/NanGuang lights or spot lights with built-in radio receiver.
Depending on the type of light, the radio remote control can be used to adjust brightness, color temperature, green/magenta correction, color and color saturation. With some lights, the radio remote control can also be used to select lighting effects and certain effects can be triggered manually (firmware with protocol 2.0 or higher required).

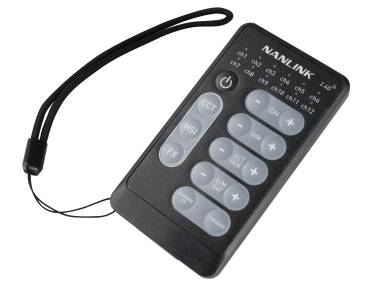

Easy to use: selection buttons for white light mode, color mode, effect mode and lighting effect. Step-up/step-down buttons for setting radio channel, brightness, color temperature, green/magenta correction, color and color saturation; fast forward with pressed button. Trigger button for manual triggering of certain lighting effects. With another button the light can be switched off and on again with the previously set brightness.
Multiple lights can be controlled together or independently, depending on whether the same or a different radio channel is selected.

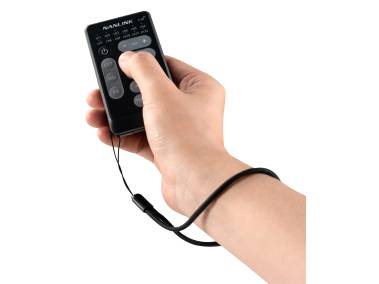

With wrist strap.
Supplied without battery (required: 1 x lithium button cell battery CR2032).
Can be used with:
Name code no.
-----------------------------------------------------------------------------------NANLITE
NANLITE
CSA 600 / 900 / 1200 3754 / 3757 / 3755 / 3758 / 3756 / 3759
DSA 1200 3753
FC-60B / 120B / 9742583 / 9742584 /
300B / 500B / 500C 3925 / 3927 / 9742654
Forza 60 / 60B* / 150* / 3750 / 3766 / 3749* / 3765* / 3831* /
150B / 200* 3830* / 3790
Forza 60II / 60BII / 60C 3902 / 3903 / 3867
Forza 300 / 300B* / 500 / 3772 / 3786* / 3773 /
720 / 720B 3838 / 3839
Forza 300II / 300BII / 3910 / 3911 /
500II / 500BII 3912 / 3913
FS -150* / -200* / -300* 3818* / 3820* / 3822*
FS-60B / 150B / 200B / 3817 / 3819 / 3821 /
300B / 300C 3823 / 9742653
halo 16 3792
LumiPad 11 3729
MixPad 11 / 27 3721 / 3722
MixPanel 60 / 150 3876 / 3877
MixWand 18 / 18II 3724 / 3726
PavoBulb 10C 3675 / 3676
PavoSlim 60C / 60CL / 3984 / 9742634 /
120B / 120C / 240B / 240C 3982 / 3985 / 9742591 / 9742594
PavoTube 15C / 30C 3716 / 3718
PavoTube II 15C / 30C 3943 / 3945 / 3944 / 3946
PavoTube II 6C* 3708*
PavoTube II 15X* 3720* / 3850* / 3860*
PavoTube II 15XR 3965 / 3968 / 3971
PavoTube II 30X* 3723* / 3851* / 3861*
PavoTube II 30XR 3966 / 3969 / 3972
PavoTube II 60X* 3852
PavoTube II 60XR 3970
NANLUX
Evoke 900C / 1200 / 93048 / 93052 / 93056 / 93058
1200B / 2400B 93094 / 93096 / 93097
Dyno 650C / 1200C 93001 / 93002 / 93004 / 93005
NanGuang
CSA II 1200 3656
Luxpad 23 3629 / 3635
Mixpad 41 / 106 3637 / 3638
P100WII 3670
RGB 66 / 88 / 173II 3621 / 3624 / 3622
Venus V29C 3692
* Selection of lighting effects and manual triggering of certain effects via radio remote control possible from firmware with protocol 2.0 (firmware update for light may be required).
Specifications:
Radio frequency: 2.4 GHz
Control distance: max. 10 m (33 ft.) (subject to environmental limitations)
Max. radio-frequency power: 0 dBm
Channels: 12
Battery operation: 1 x lithium battery CR2032 (not included)
Dimensions (WxHxD): approx. 53 x 96 x 9 mm (2.1 x 3.8 x 0.4 in.)
Weight: approx. 33 g / 1.2 oz. (without battery)
Code no: 3702
Subject to errors and technical changes.
