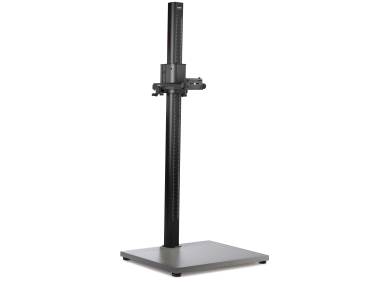

RSDmot 1.8 Copy Stand

Code no: 5600

Column made of special aluminum multisection tubing, matt black anodized, with cm and inch scales.
Camera carrier made of aluminum section, can be horizontally adjusted over approx. 25 cm (9.8 in.) with rack-and-pinion parallel guides. Left hand/right hand operation, two blocking screws prevent inadvertent changing of the adjusted position. Camera mounting plate tiltable by ± 90°. Connecting screw horizontally adjustable. Height adjustment motorized, with two speeds. Cable remote control. Constant adjustment speed, independent of load. Automatic end switch by magnet sensor.

Large non-reflecting matt grey base plate with printed grid, cm and inch scales. Feet
adjustable in height. Spirit level.

Base plate (WxHxD): 900 x 38 x 730 mm (35.4 x 1.5 x 28.7 in.)
Height of column: 1.80 m (5.9 ft.)
Column cross section: 105 x 74 mm (4.1 x 2.9 in.)
Loading capacity: 8 kg (17.6 lbs.)
Camera mounting plate: 130 x 78 mm (5.1 x 3.1 in.)
Reversing mounting thread: 1/4” / 3/8” changeable
