“2fix” Ball-Tilt-Head

Code no: 7201

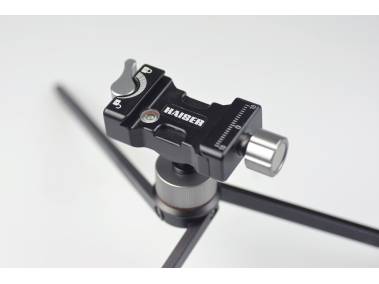

Solid ball-tilt-head with quick release connector and two mounting possibilities: For mounting on tripods/stands and fixtures with 1/4" connecting thread and to 1/4" threaded holes.

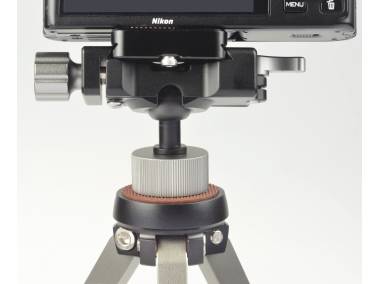

For cameras and smartphones (smartphone holder 6015 required).

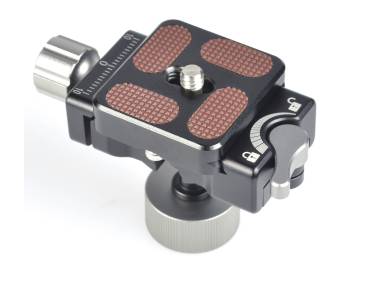

Quick release system with dovetail clamping and blocking screw (Arca-Swiss compatible). Quick release plate with non-slip surface, 1/4" D-ring screw with coin slot and detachable slide-off protection.

Made of sturdy, durable aluminum alloy.

Spirit level for horizontal alignment.

Tiltable up to 90° for portrait shots. Locking lever for ball, blocking screw for quick release plate.

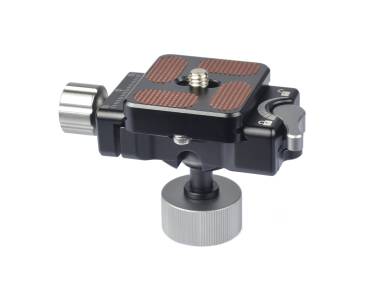

Incl. removable thread adapter with threaded holes 1/4".


Height: approx. 5.2 cm (2 in.)
Ball diameter: approx. 17 mm (0.7 in.)
Weight (incl. adapter): approx. 125 g (4.4 oz.)
Max. load: 4 kg (8.8 lbs.) (on centre)

Also available in the following sets:

7222   "MiniProp" Table Tripod (7221) with "2fix" Ball-Tilt-Head (7201)

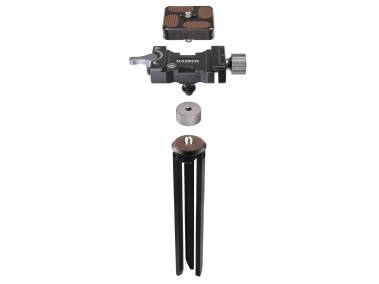

7224   "solid 3+" Mini Tripod (7223) with "2fix" Ball-Tilt-Head (7201)

Accessories

6015 - Smartphone Mount

Subject to errors and technical changes.
