NANLITE 900CSA LED Soft Light

Code no: 3755



Bi-color panel light for even and soft illumination with photo and video shots.

Specially selected LEDs with high color rendering index (CRI ≥ 95, TLCI = 93) provide for excellent light quality. Flicker-free light without residual ripple and without IR and UV content. Very low heat radiation.

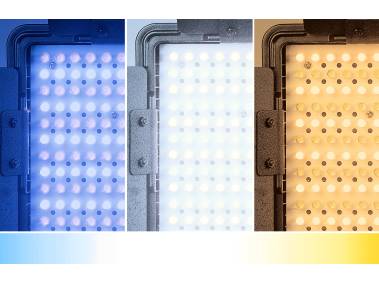

Color temperature can be adjusted from 3200 Kelvin (artificial light/warm-white) up to 5600 Kelvin (daylight/neutral color rendering).

Brightness continuously dimmable.

A built-in radio receiver allows for a wireless control of brightness and color temperature (remote control 3702 is available as an accessory). 512 radio channels selectable.

Digital display shows setting of brightness, color temperature and radio channel.

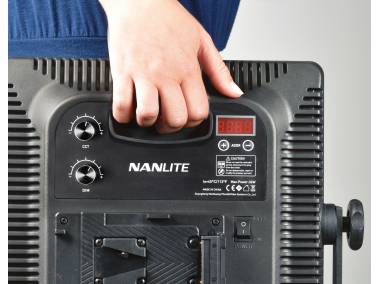

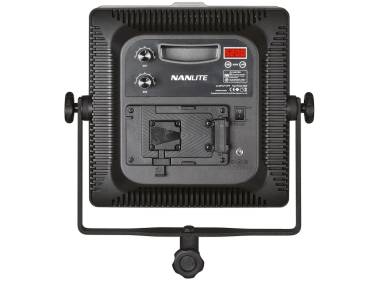

Tiltable mounting bracket. Light mounts to receiving hole for 28 mm standard spigot and on suitable stands and fixtures with 16 mm standard spigot. Recessed grip on rear panel for easy carrying.

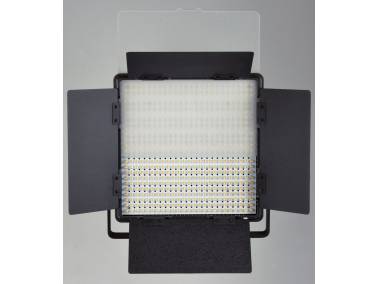

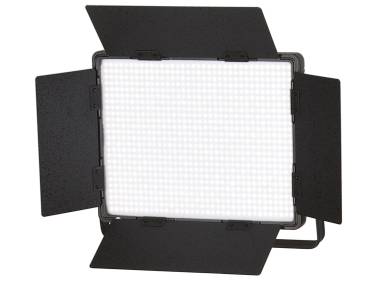

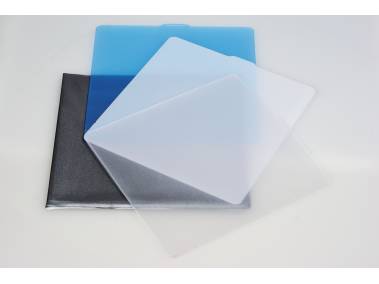

Four large barn doors for direct-aim lighting. Built-in frame mount for diffusor, soft screen and blue filter screen supplied with the light.

Angle of radiation (half-value angle) without screen is 50°, with diffusor or blue filter approx. 55° and with soft screen approx. 90°.

Operation via the included mains adapter. Mains adapter support for attachment on V-mount fixture is also included.

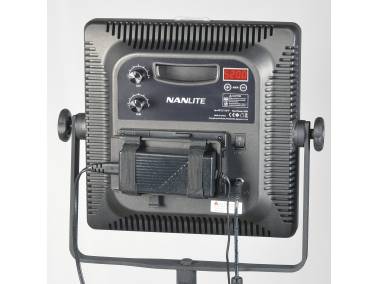

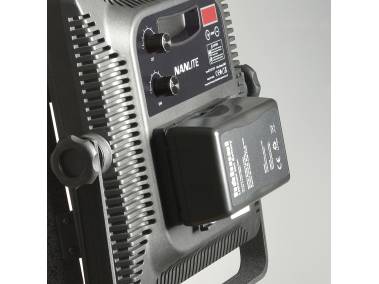

Light can also be powered by a V-mount battery (not included) for mobile use.

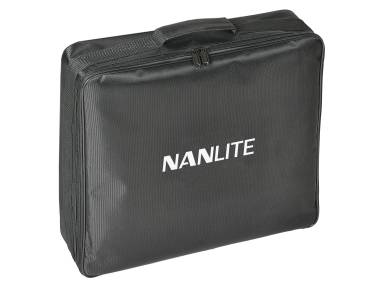

Scope of supply: LED soft light, mains adapter with cable, mains adapter support, diffusor screen, soft screen, blue filter, case for two screens, carrying case.

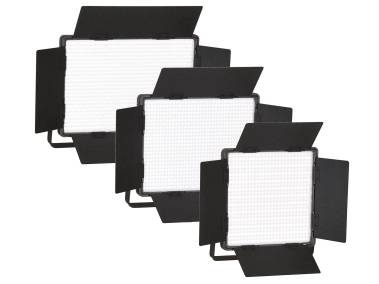

3754: 600CSA
LED panel with 600 High-CRI-LEDs
Color temperature (adjustable): 3200 – 5600 Kelvin
Color rendering index: CRI ≥ 95, TLCI = 93
Max. illuminance: 2525 Lux at 1 m (3 feet) and 55°angle of radiation)
Illuminating surface: 25.5 x 25.5 cm (10 x 10 in.)
Max. power: 36 W
Operating voltage: DC 12-15 V
Suitable battery: V-Mount
Dimensions (including mounting bracket): 34.5 x 38.5 x 8.8 cm (13.6 x 15.2 x 3.5 in.)
Weight: 2080 g (4.6 lbs.)
Also available as a DoubleKit: 3757

3755: 900CSA
LED panel with 900 High-CRI-LEDs
Color temperature (adjustable): 3200 – 5600 Kelvin
Color rendering index: CRI ≥ 95, TLCI = 93
Max. illuminance: 3465 Lux at 1 m (3 feet) and 55°angle of radiation)
Illuminating surface: 33 x 25.5 cm (13 x 10 in.)
Max. power: 54 W
Operating voltage: DC 12-15 V
Suitable battery: V-Mount
Dimensions (including mounting bracket): 42 x 37.5 x 8.8 cm (16.5 x 14.8 x 3.5 in.)
Weight: 2360 g (5.2 lbs.)
Also available as a DoubleKit: 3758

3756: 1200CSA
LED panel with 1152 High-CRI-LEDs
Color temperature (adjustable): 3200 – 5600 Kelvin
Color rendering index: CRI ≥ 95, TLCI = 93
Max. illuminance: 5060 Lux at 1 m (3 feet) and 55°angle of radiation)
Illuminating surface: 38 x 25.5 cm (15 x 10 in.)
Max. power: 72 W
Operating voltage: DC 15 V
Suitable battery: V-Mount
Dimensions (including mounting bracket): 47 x 38 x 8.8 cm (18.5 x 15 x 3.5 in.)
Weight: 2580 g (5.7 lbs)
Also available as a DoubleKit: 3759

Accessories

3702 - NANLINK WS-RC-C2 RGB and Bi-Color Radio Remote Control

3890 - NANLITE BT-V-14.8V160 V-Mount Battery

3893 - NANLITE BT-CGV-14.8V-1 Charger

3194 - „Compact 175“ Light Stand

3193 - "Basic" Light Stand

3186 - “AutoFold S” Light Stand

3188 - “AutoFold L” Light Stand

3195 - Light Stand "Small"

3196 - Light Stand "Large"

3198 - Studio Light Stand 131-217 cm           (51.6 to 85.4 in.)

5048 - Reversible Thread Pin

5040 - "Magic Arm" Hinged Bracket

5043 - Universal Clamp

5847 - Sockets

3647 - NANLITE Carrying Case CN-T2

Subject to errors and technical changes.

This product is marketed for the purpose of illumination for image capture. It is not intended for use in other applications.
