RB 551 AB LED Lighting Unit

Code no: 5545

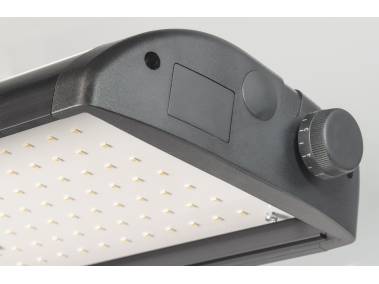

LED daylight lighting unit with two light banks for even and soft illumination. Emitted light has absolutely no IR and UV content. Constant current driver for flicker-free operation. Each light equipped with 192 selected white SMD LEDs 5600 Kelvin, CRI: 96. Elaborate passive cooling via LED board and light metal housing.

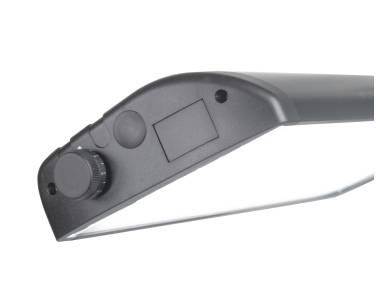

Lights can be dimmed separately.

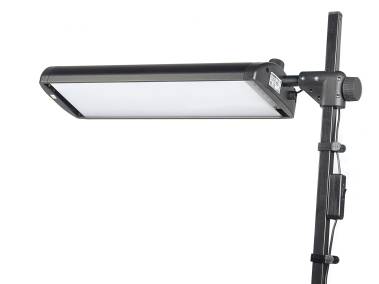

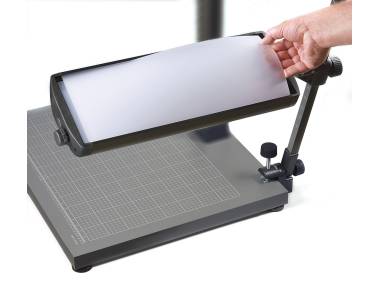

Lamp housings made of sturdy anodized aluminum section, can be swiveled, shifted and adjusted in height. Detachable soft screens.

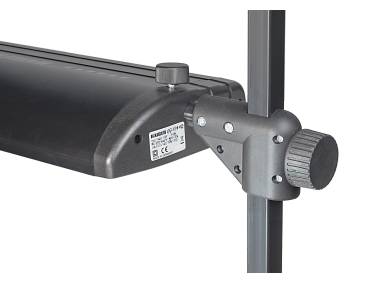

Vertical arms with height markings, tiltable with detents. Mounted with strong cast aluminum clamp bases, clamp width up to 48 mm (1.9 in.).

Mains operation. Mains leads with cable switch.

Specifications:

LED arrays: 2 x 192 SMD LEDs
Color temperature: 5600 K
Color rendition index: CRI: 96
LED angle of radiation: 100°
Max. illumination
   with soft screen: 4600 lux,
   w/o soft screen: 5200 lux
   (based on uniform illumination of a 16.5 x 11.5 in. flat subject)
Power consumption: 2 x 24 W
Operating voltage: 220-240 V, 50/60 Hz or 120 V, 60 Hz
Light emitting area of one light: 39 x 16.5 cm (15.4 x 6.5 in.)
Vertical arms: 76 cm (29.9 in.), 20 x 20 mm (0.8 x 0.8 in.) edge dimension
Mains leads: approx. 2.40 m (7.9 ft.) each

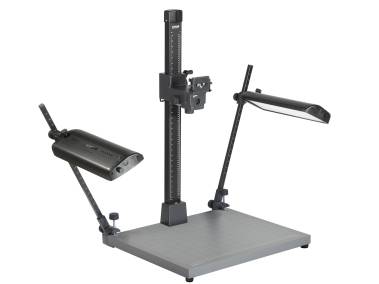

The RB 551 AB lighting unit is suitable for copy stands of the R1 System and the RSD (5602) and RSDmot (5603) copy stands.
