LED RB 5070 DX2 Lighting Unit

Code no: 5550

LED daylight lighting unit with two light banks for even and soft illumination. Emitted light has absolutely no IR and UV content. DC operation provides for flicker free light without residual ripple. Each light equipped with 161 selected white SMD LEDs. Lights can be dimmed separately or in conjunction. Incl. removable diffusing cover (5466).

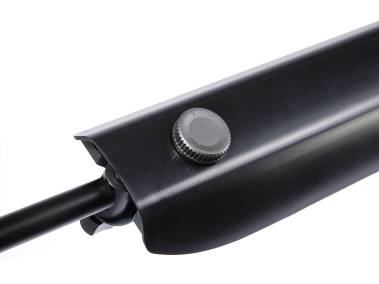

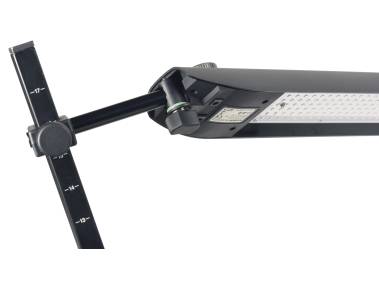

Lights can be tilted, swiveled and adjusted in height. Vertical lamp arms tiltable with detents. Mounted with strong die-cast clamp bases, clamp width up to 48 mm (1.9 in.).

LED array: 2 x 161 SMD LEDs
Color temperature: approx. 6000 K
Color rendering index: CRI > 93
LED angle of radiation: 110°
Power consumption: 2 x 27 W
Illuminance on subject surface*: 3000 lux

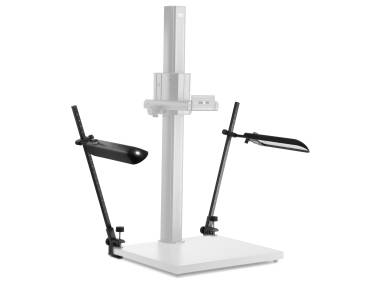

The RB 5070 DX2 lighting unit is suitable for all R1 System copy stands and RSD 5602 and RSDmot 5603.

* measured with highest possible evenness of illumination of a 16.5 x 11.5“ flat subject


Subject to errors and technical changes.

This product is marketed for the purpose of illumination for image capture. It is not intended for use in other applications.
